Overhaul steer gear pump #01 & #02
SERVICE
REPORT
Company Reg No : 198602637N
ISO 9001:2008 accredited
VESSEL :
PORT : KEPPEL
JOBNO :
EQUIPMENT : STEERING GEAR
DATE :

MAKE : HATLAPA

MODEL : A4VG
ITEM
DESCRIPTION / REMARKS :
JOB DESCRIPTION :
Overhaul steer gear pump #01 & #02
1
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering Gears,
Valve Remote Controls.

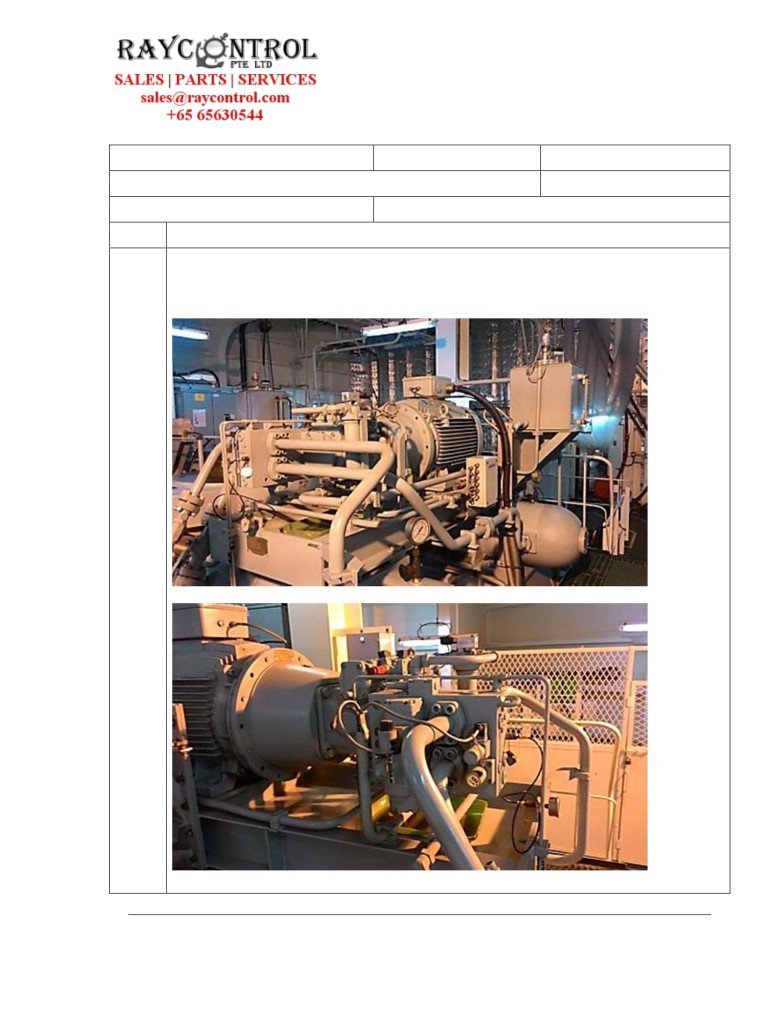

DISMANTILE PUMP FROM STEER GEAR SYSTEM
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
608599Tel:65630544 Fax:65600941
Company Reg No : 198602637N
sales@raycontrol.com
ISO 9001:2008 accredited

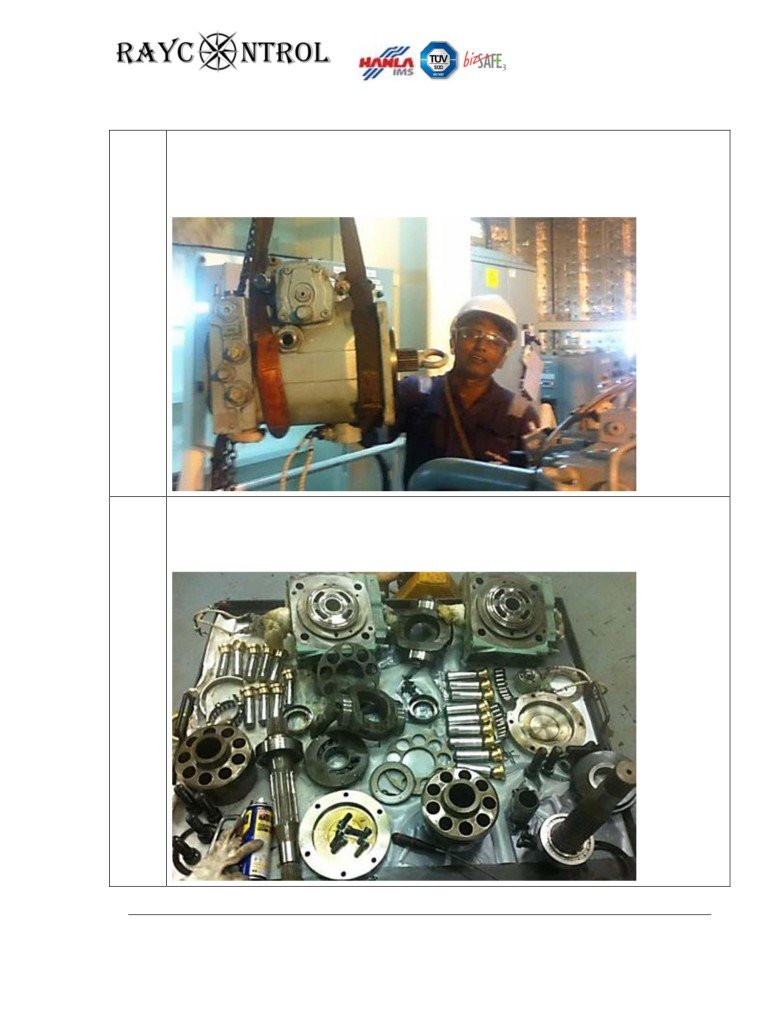

DISMANTILE PUMP FROM STEER GEAR SYSTEM :
Drained out oil from tank, removed coupling, pipings, bell housing and all connects.
Rig and lifted pump via sky light.
2

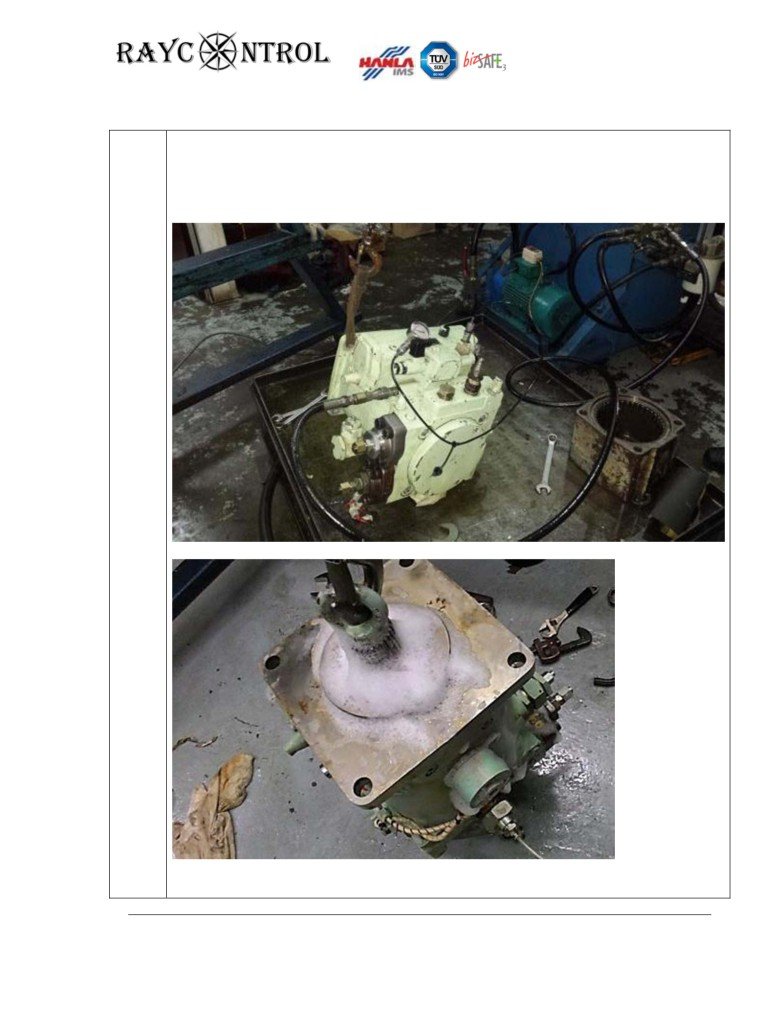

PUMP DISMANTILED FOR INSPECTION :
Completely dismantled pump inspected
Friction plate, pistons and rotary unit checked satisfactory.
Discuss with Super, requested to renew all seals and bearings
3
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering Gears,
Valve Remote Controls.
RENEWAL OF SEALS AND BEARINGS
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
608599Tel:65630544 Fax:65600941
Company Reg No : 198602637N
sales@raycontrol.com
ISO 9001:2008 accredited

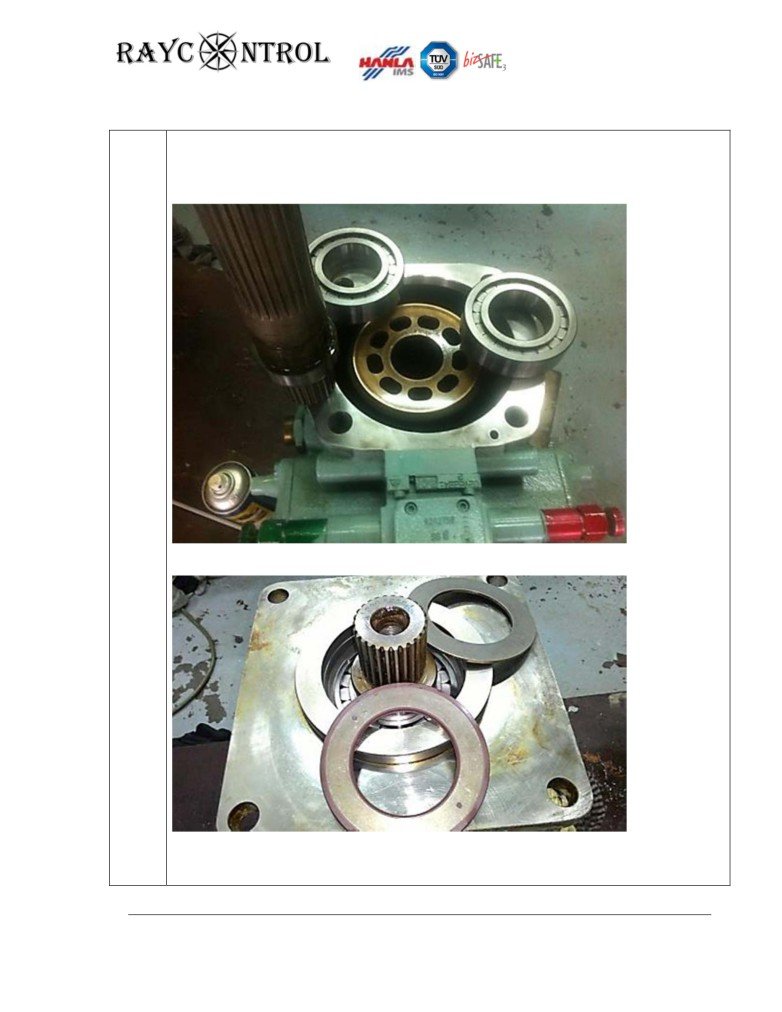

RENEWAL OF SEALS AND BEARINGS :
Renewed all bearings and seals. Reassembled the pump carefully.
4
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering Gears,
Valve Remote Controls.
SHOP TEST
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
608599Tel:65630544 Fax:65600941
Company Reg No : 198602637N
sales@raycontrol.com
ISO 9001:2008 accredited
SHOP TEST :
Carried out shop test and calibrated pressure setting.
Adjusted servo neutral and pump stroke.
Carried out leak test satisfactory.
5
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering Gears,
Valve Remote Controls.
FINAL TESTING ONBOARD
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
608599Tel:65630544 Fax:65600941
Company Reg No : 198602637N
sales@raycontrol.com
ISO 9001:2008 accredited

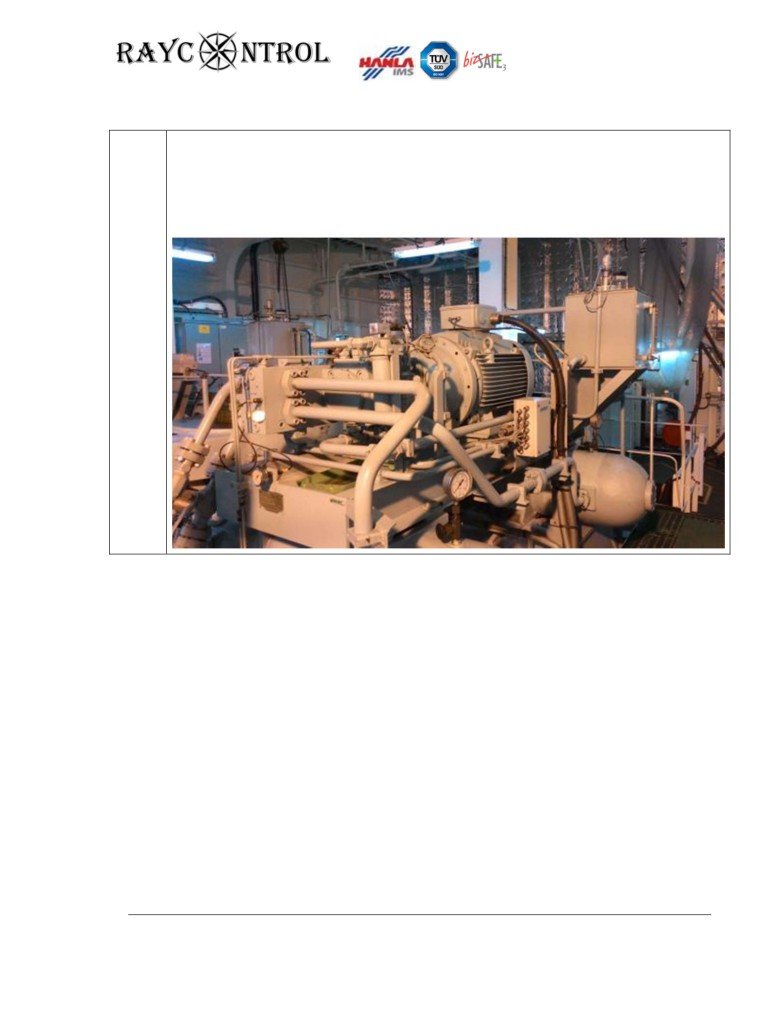

FINAL TESTING ONBOARD :
Install onboard, carried out system settings.
The steering gear system on all mode of FU, NFU, Autopilot working satisfactory and
witnessed by Vessel Engineer and APM
6
REPORTED BY
ARUNKUMAR
Tech dept…
