SERVICE
REPORT
JOB NO:20100836
1 | P a g e
V E S S E L :
L
O C :CHINA(IMC-YY)
DATE:07/10/2010
MAKE:
Mitsubishi Heavy
EQUIPMENT:
STEERING GEAR PUMP
MODEL: IV-FH2BMK
DEFECTS REPORTED / REASON FOR CALL: No.1 steering pump (stbd.side) overhaul.
ITEM
DESCRIPTION
REMARKS
General information:-
1
As requested by chief engineer no.1
steering pump (stbd. side) for
overhaul.

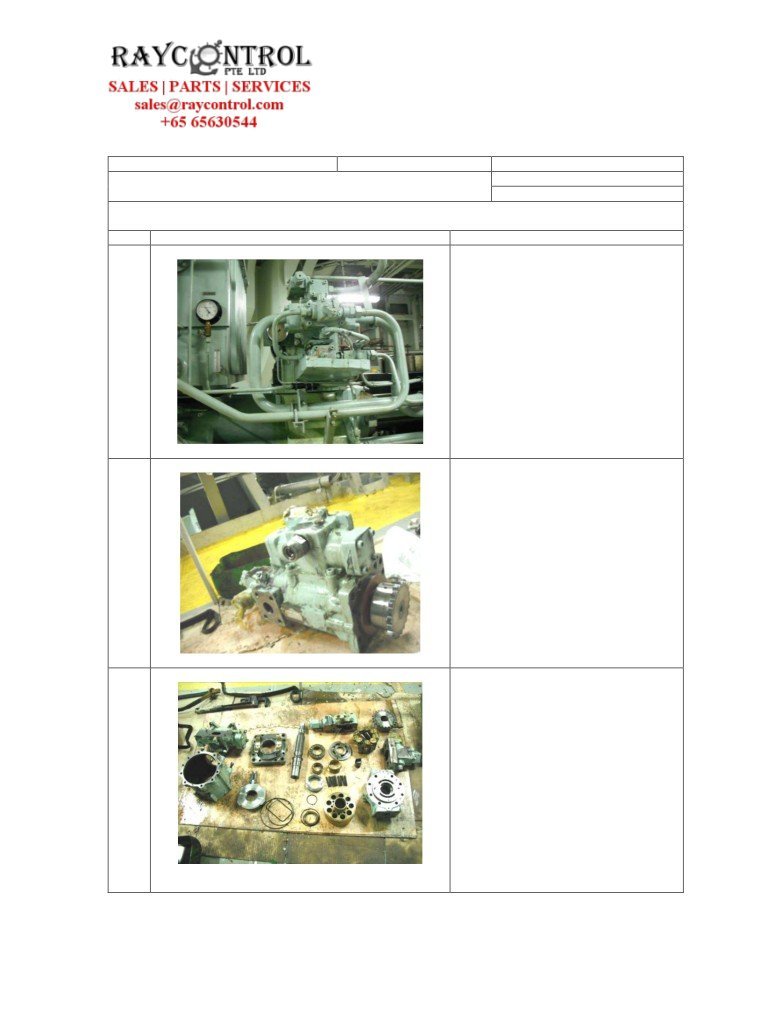

Dismantle pump:-
2
Disconnected coupling from motor and
rig pump to floor.
Dismantle steering pump:-
3
Pump complete dismantled for
inspection.
HYDRAULICS AND AUTOMATIONS SPECIALISTs - Sales and Service Centre
25 years over 7000 track records. www.joblist.raycontrol.com
SERVICE
REPORT
RayControl Pte Ltd
7 TOH GUAN ROAD EAST #05-07 ALPHA IND BLDG SINGAPORE 608599
TEL: +65 65630544 FAX: +65 65600941 email:sales@raycontrol.com
JOB NO:20100836
Company Reg No : 198602637N
Affiliated : E-Trust Automation Pte Ltd
2 | P a g e

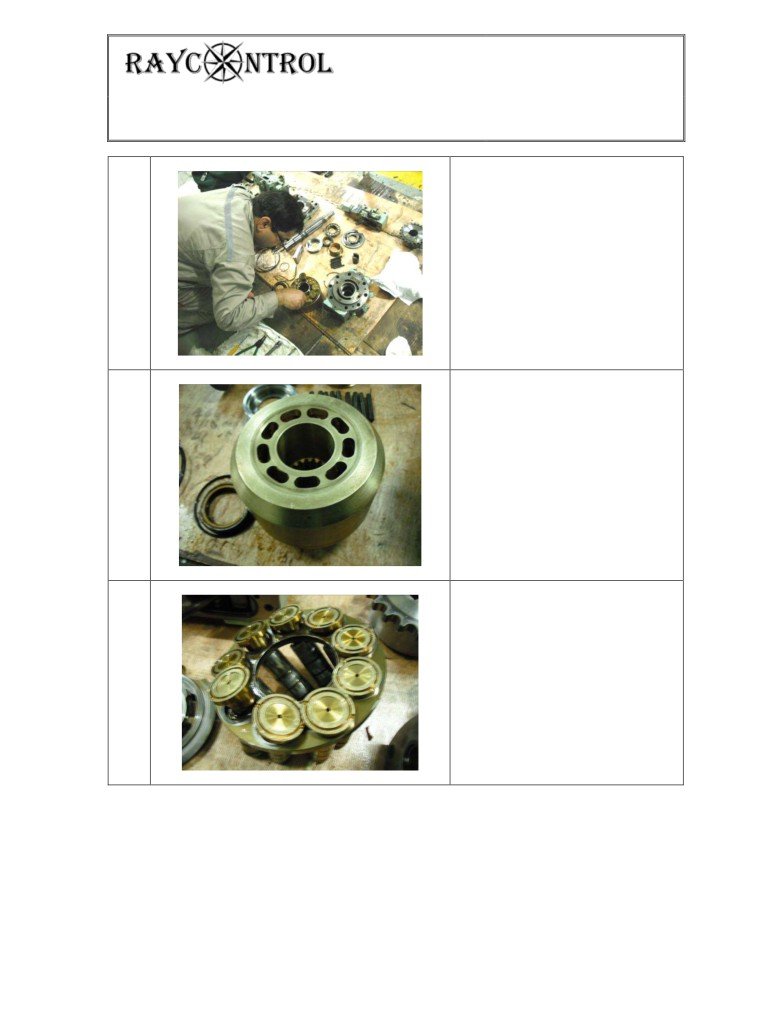

Inspection:-
4
All parts inspected by chief
engineer and super.

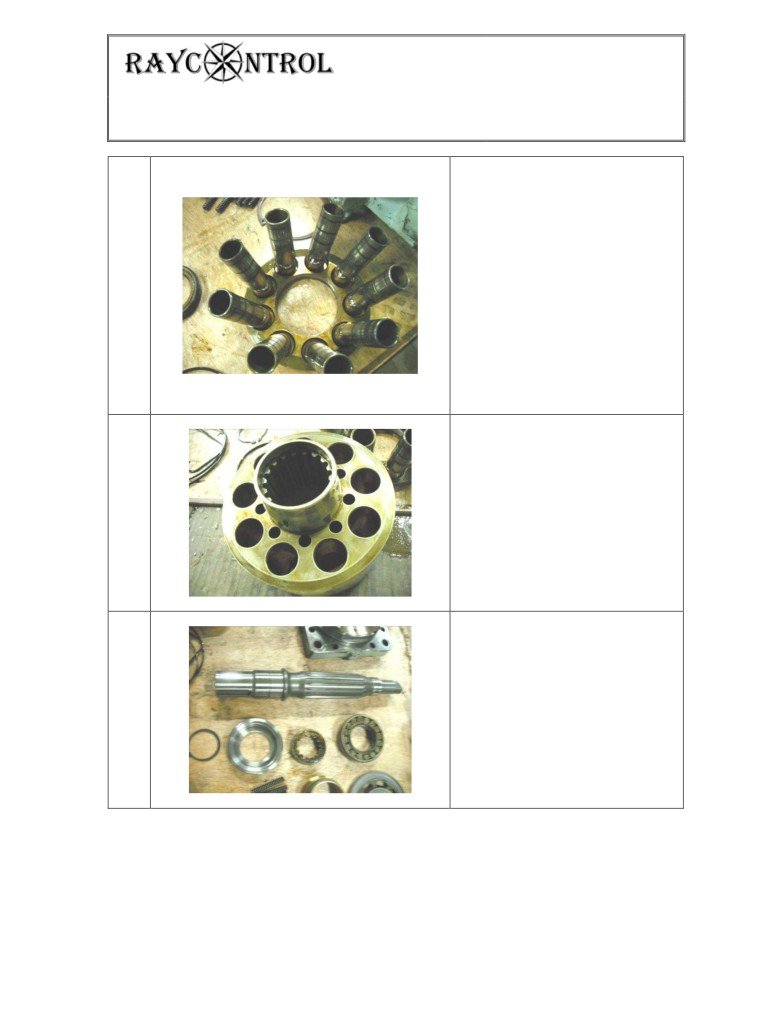

Barrel condition:-
5
Checked barrel mating satisfactory.
Piston shoe condition:-
6
Checked piston shoe with
satisfactory.
HYDRAULICS AND AUTOMATIONS SPECIALISTs - Sales and Service Centre
25 years over 7000 track records. www.joblist.raycontrol.com
SERVICE
REPORT
RayControl Pte Ltd
7 TOH GUAN ROAD EAST #05-07 ALPHA IND BLDG SINGAPORE 608599
TEL: +65 65630544 FAX: +65 65600941 email:sales@raycontrol.com
JOB NO:20100836
Company Reg No : 198602637N
Affiliated : E-Trust Automation Pte Ltd
3 | P a g e
Piston condition:-
7
Checked all piston condition with
satisfactory.
Barrel condition:-
8
Checked barrel condition with
satisfactory.
Shaft condition:-
Checked shaft condition and shaft
seal area with satisfactory.
HYDRAULICS AND AUTOMATIONS SPECIALISTs - Sales and Service Centre
25 years over 7000 track records. www.joblist.raycontrol.com
SERVICE
REPORT
RayControl Pte Ltd
7 TOH GUAN ROAD EAST #05-07 ALPHA IND BLDG SINGAPORE 608599
TEL: +65 65630544 FAX: +65 65600941 email:sales@raycontrol.com
JOB NO:20100836
Company Reg No : 198602637N
Affiliated : E-Trust Automation Pte Ltd
4 | P a g e
Servo controller:-
10
Renewed sealing kit for servo
controller.

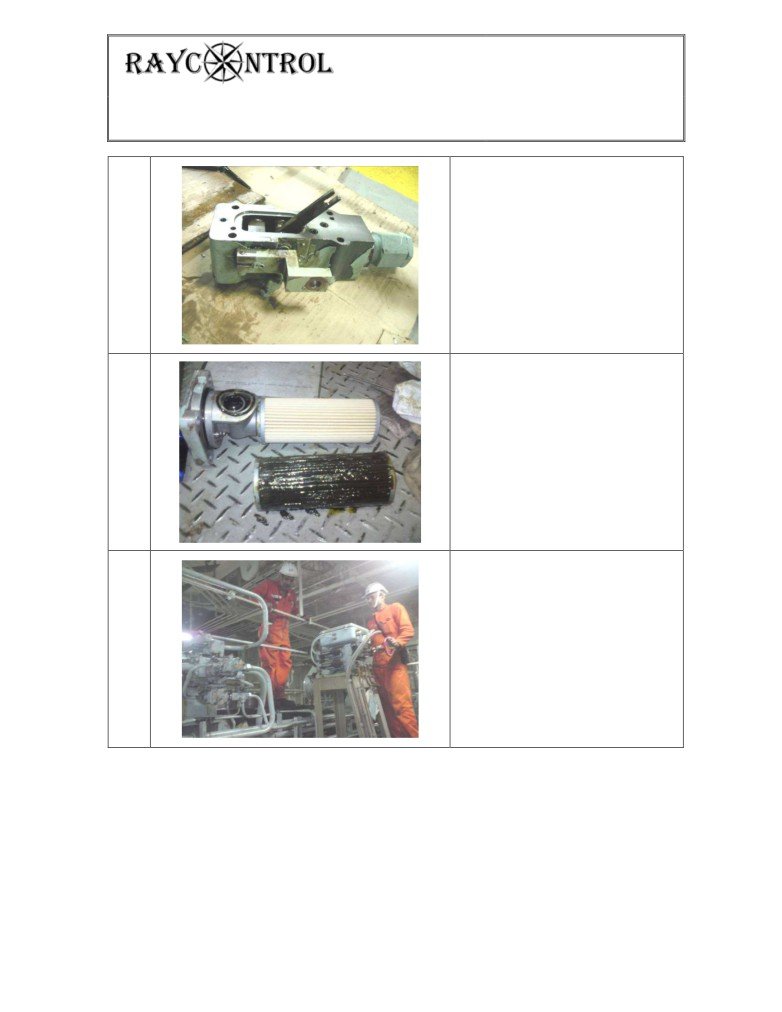

System filter:-
Renewed hydraulic filter for both
port and stbd. steering pump.
11
Existing filters found very badly
coated with dirt/sludge as shown
picture beside new filter. Both
steering pump hydraulic oil renewed.
Function test:-
Renewed all sealing kits, bearings,
12
installed back pump, re-aligned pump
with electric motor and function
tested by chief engineer satisfied.
Report by: - Hasan
Service engineer.
