SERVICE
REPORT
ISO 9001:2008 ACCREDITED
JOB NO : 20110326
sales@raycontrol.com
Page 1 of 4
VESSEL:
PORT: LISBON
DATE: 10 JULY 2011
MAKE: SAMGONG DANFOSS
EQUIPMENT: VRC (VALVE REMOTE CONTROL)
MODEL: BHA234
DEFECTS/REASON FOR CALL: INSPECTION AND SERVICE
#
DESCRIPTION
REMARKS

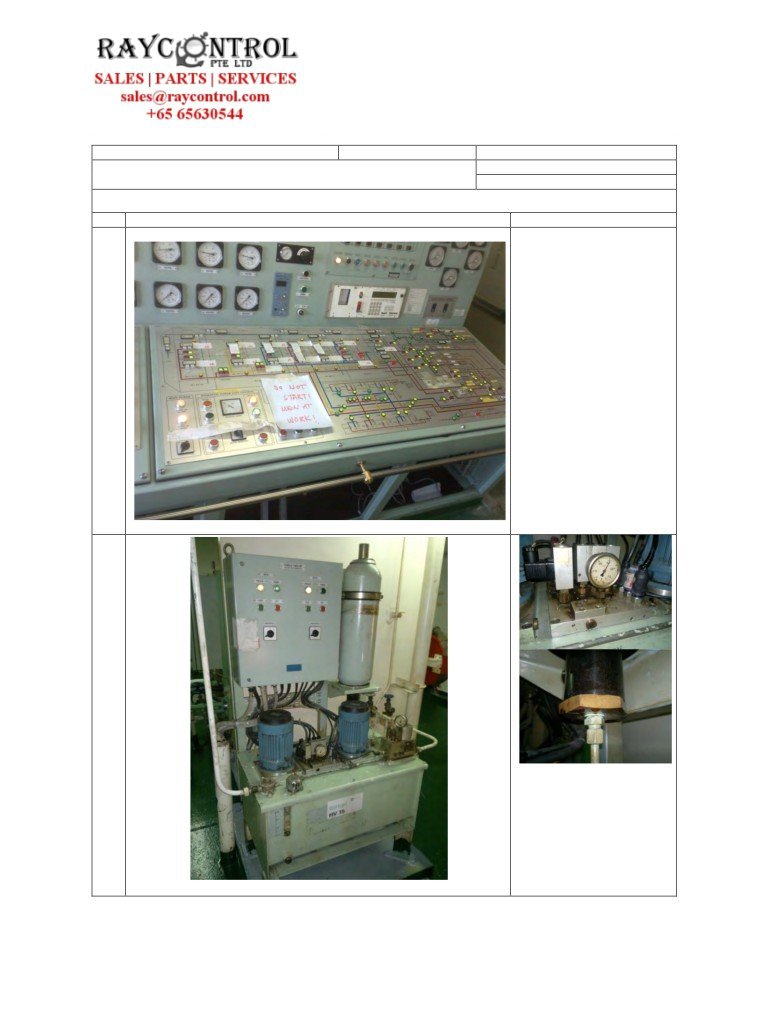

CCR VALVE CONTROL PANEL
Discussion with C/O and
was given a list of
some 95% of valves
having various
problems.
Issue with CCR
1
indications, local
indications error,
Reverse operations
And indications.
Valve
not open/close full,
not holding or
not working.
2
POWER PACK
Check and tested power
pack satisfactory. Pressure
@ 130 bar with good
temperature. Slight residual
oil found on accumulator
couplings but no leakage.
No abnormality found.
_____________________________________________________________________________________
* HANLA * HAEAN * PUSNES * KOCKS * BLM * KAWASAKI * STAFFA * KAYABA * MHI * KRACHT * DONGNAM *
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
ISO 9001:2008 ACCREDITED
608599Tel:65630544 Fax:65600941
JOB NO : 20110326
sales@raycontrol.com
Company Reg No : 198602637N
Page 2 of 4
3

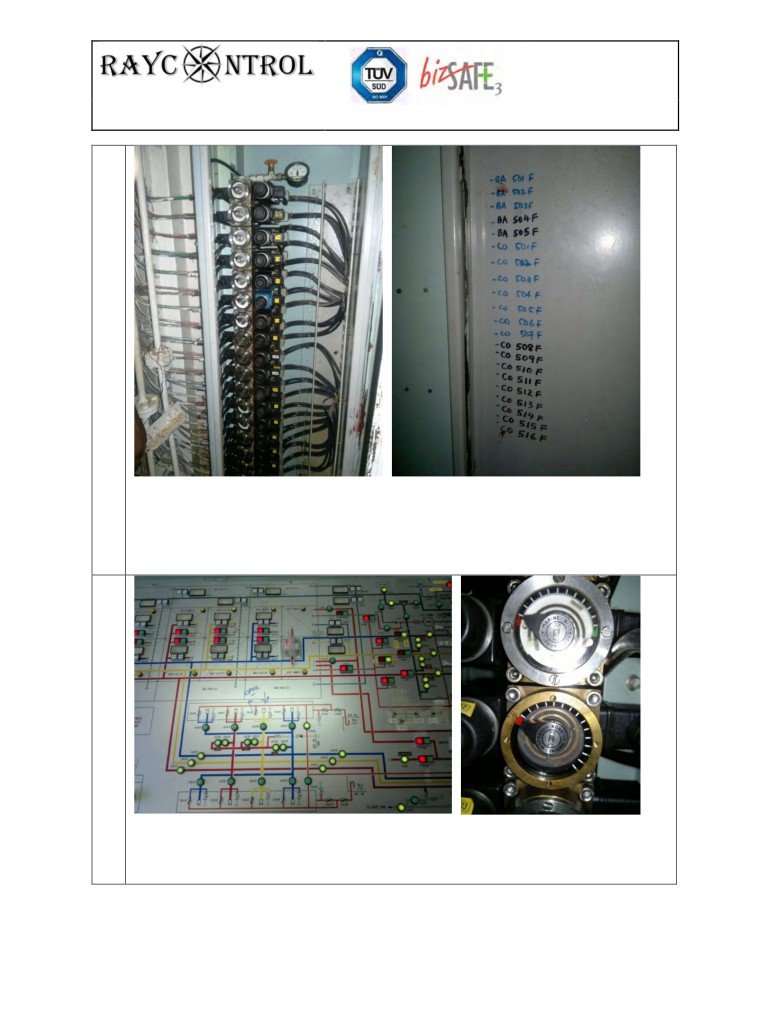

HYDRAULICS SOLENOID PANEL
There are 03 panels each seat 23 Nos soln v/vs.
PANEL 1 and 2 in HYD ROOM, Panel 3 in Bosun Store.
Several valves indentifiaction tags were missing, sorted out and listed on panel
door with permanent markers.
4
PRE TROUBLESHOOTING, TEST AND ADJUSTMENTS
Carried out troubleshooting, test and adjustments of all VRC valves.
Rectify and adjusted all CCR and Local blinking indication errors.
_____________________________________________________________________________________
* HANLA * HAEAN * PUSNES * KOCKS * BLM * KAWASAKI * STAFFA * KAYABA * MHI * KRACHT * DONGNAM *
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
ISO 9001:2008 ACCREDITED
608599Tel:65630544 Fax:65600941
JOB NO : 20110326
sales@raycontrol.com
Company Reg No : 198602637N
Page 3 of 4
5
SYSTEM LEAK TEST
Tested Pressure holding satisfactory

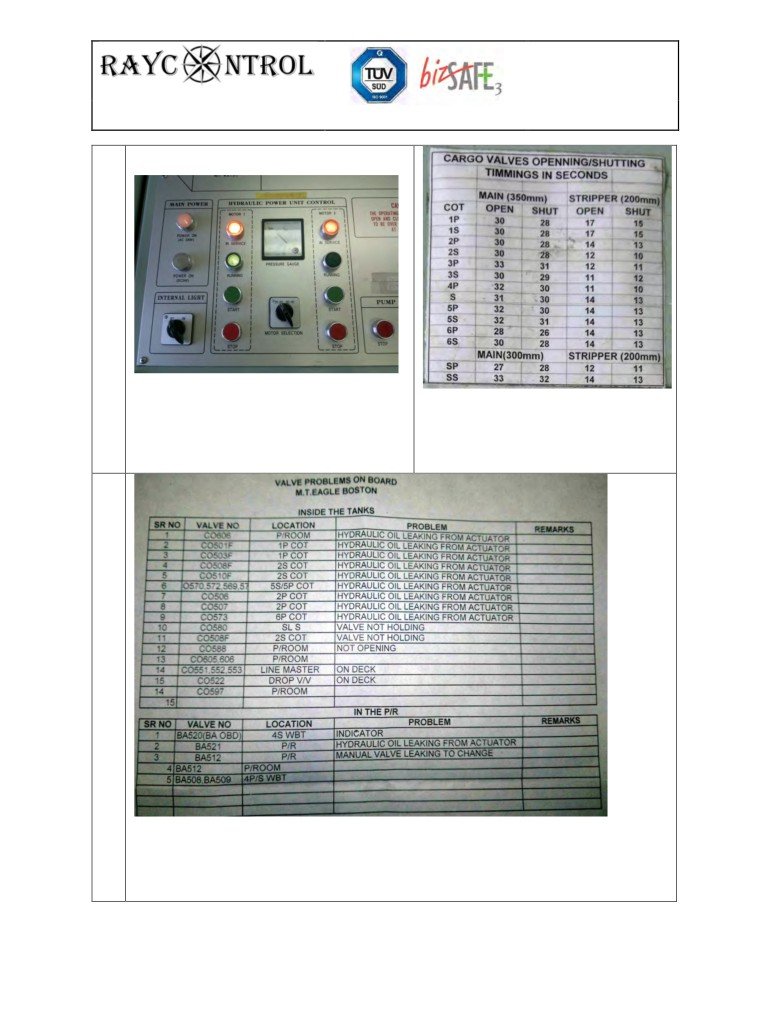

OPEN/SHUT TIMING
signify minimal leak in complete system
Mark and noted main CO valve speed
circuitry or valve actuactors
deviations for later adjustments
after yard valve overhaul.
6
FINAL TROUBLESHOOTING, RECTIFICATION AND ADJUSTMENTS
After yard valve repair, reinstall, list of defects was given by C/O.
Namely, leaking from connect tubings and actuactors, valve not holding, unble to
open/close, CCR indications, reverse operation were all recified.
_____________________________________________________________________________________
* HANLA * HAEAN * PUSNES * KOCKS * BLM * KAWASAKI * STAFFA * KAYABA * MHI * KRACHT * DONGNAM *
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
ISO 9001:2008 ACCREDITED
608599Tel:65630544 Fax:65600941
JOB NO : 20110326
sales@raycontrol.com
Company Reg No : 198602637N
Page 4 of 4

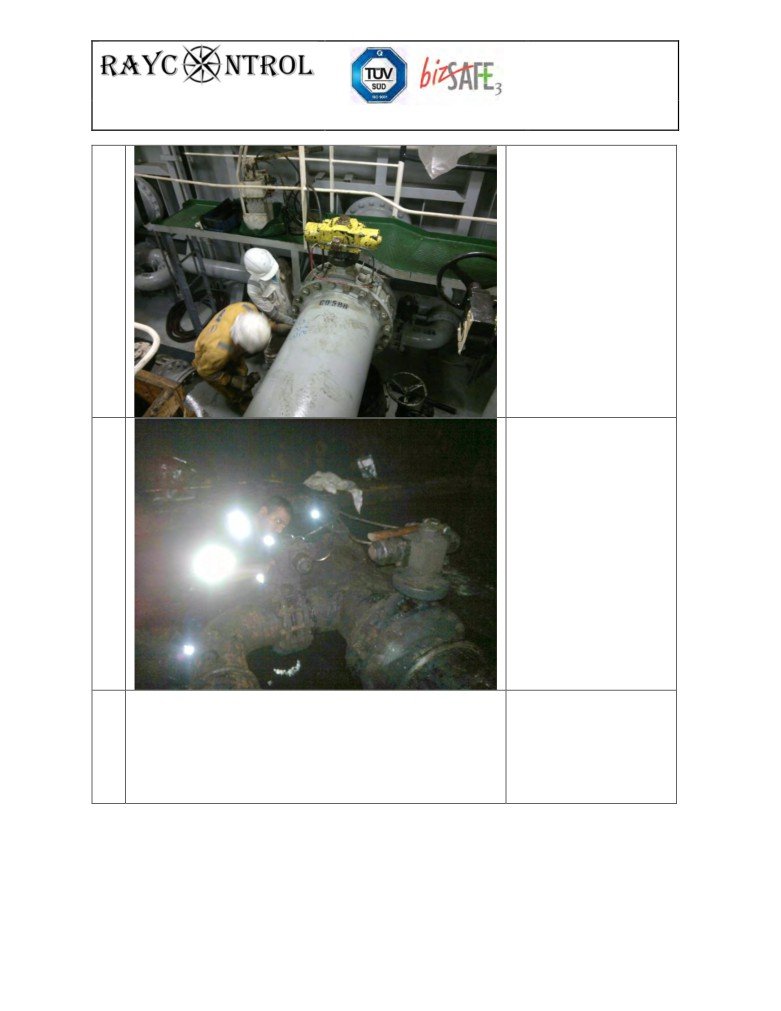

CO 588F VALVE JAM
Crew, Yard rectify and
tested several times
satisfactory, However
valve jammed up again
and over weekend unable
to have yard presence.
Assisted crew rectify.
7
Slacked valve free and
opened valve.
Informed crew, valve
MUST BE IN OPEN
POSITION when
retightening valve
flange otherwise valve
will drop back into
misalign postion.
OVERHAUL ACTUACTORS
06 Nos Valve actuactors
in 2S, 5S, 6P found
8
with very slight wet
leak renewed with new
seals and packings and
tested satsifactory.
VRC system rectify and tested satsifactory to vessel
engineer acceptance
Report By
Tan Raymond
Specialist Engineer
_____________________________________________________________________________________
* HANLA * HAEAN * PUSNES * KOCKS * BLM * KAWASAKI * STAFFA * KAYABA * MHI * KRACHT * DONGNAM *
TEST
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
ISO 9001:2008 ACCREDITED
608599Tel:65630544 Fax:65600941
JOB NO : 20110523
sales@raycontrol.com
Company Reg No : 198602637N
Page 1 of 3
PORT:LISNAVE
VESSEL:EAGLE BOSTON
DATE:21.06.2011
PORUGAL
MAKE: SAMGONG DANFOSS
EQUIPMENT:VALVE REMOTE CONTROL
MODEL: BHA
LOCATION:SOLENOID VALVE PANEL 1 (HYD ROOM)
S/N
VALVE
LOCAL
ELECTRICAL
OPEN
SPEED
REMARKS
NO
INDICATOR
INDICATOR
CLOSE
1
CO 517
Y
Y
Y
2
CO 518
Y
Y
Y
3
CO 519
Y
Y
Y
4
CO 520
Y
Y
Y
5
CO 569
Y
Y
Y
6
CO 570
Y
Y
Y
7
CO 571
Y
Y
Y
8
CO 572
Y
Y
Y
9
CO 573
Y
Y
Y
10
CO 574
Y
Y
Y
11
CO 575
Y
Y
Y
12
CO 576
Y
Y
Y
13
CO 578
Y
Y
Y
14
CO 579
Y
Y
Y
15
CO 580
Y
Y
Y
16
CO 581
Y
Y
Y
17
CO 582
Y
Y
Y
18
CO 583
Y
Y
Y
19
CO 584
Y
Y
N
REVERSE
20
CO 585
Y
Y
Y
21
CO 586
Y
Y
Y
22
CO 587
Y
Y
Y
23
CO 588
Y
N
N
NOT WORKING
24
BA 506
Y
Y
Y
25
BA 507
Y
Y
Y
Abbreviation
F
Fast / Seconds Avg Speed 10 Seconds
S
Slow / Seconds
Y
OK working
EB
Electrical Indicator Blinking
N
Not working
%
Not showing fully close/open
AL
Air Lock
S
Static, El Indicator Jumping
_____________________________________________________________________________________
* HANLA * HAEAN * PUSNES * KOCKS * BLM * KAWASAKI * STAFFA * KAYABA * MHI * KRACHT * DONGNAM *
TEST
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
ISO 9001:2008 ACCREDITED
608599Tel:65630544 Fax:65600941
JOB NO : 20110523
sales@raycontrol.com
Company Reg No : 198602637N
Page 2 of 3
PORT:LISNAVE
VESSEL:EAGLE BOSTON
DATE:21.06.2011
PORUGAL
MAKE:
EQUIPMENT:VALVE REMOTE CONTROL
MODEL:
DEFECTS/REASON FOR CALL:TESTING
LOCATION:SOLENOID VALVE PANEL 2 (HYD ROOM)
S/N
VALVE
LOCAL
ELECTRICAL
OPEN
SPEED
REMARKS
NO
INDICATOR
INDICATOR
CLOSE
1
CO 626
Y
Y
Y
2
CO 627
Y
Y
Y
3
CO 628
Y
Y
Y
4
CO 631
Y
Y
Y
5
CO 632
Y
Y
Y
6
CO 605
Y
Y
Y
7
CO 606
Y
Y
Y
8
CO 589
Y
N
N
XX
9
CO 603
Y
Y
Y
10
G1544
Y
Y
Y
11
TC 558
Y
Y
Y
12
TC 559
Y
Y
Y
13
TC 561
Y
Y
Y
14
TC 562
Y
Y
Y
15
BA 508
Y
Y
Y
AL
16
BA 509
Y
Y
Y
AL
17
BA 512
Y
Y
Y
18
BA 513
Y
Y
Y
19
BA 514
Y
Y
Y
20
BA 515
Y
N
Y
ES
21
BA 517
Y
Y
Y
22
BA 520
Y
N
Y
ES
23
BA 521
Y
Y
Y
_____________________________________________________________________________________
* HANLA * HAEAN * PUSNES * KOCKS * BLM * KAWASAKI * STAFFA * KAYABA * MHI * KRACHT * DONGNAM *
TEST
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
ISO 9001:2008 ACCREDITED
608599Tel:65630544 Fax:65600941
JOB NO : 20110523
sales@raycontrol.com
Company Reg No : 198602637N
Page 3 of 3
PORT:LISNAVE
VESSEL:EAGLE BOSTON
DATE:21.06.2011
PORUGAL
MAKE:
EQUIPMENT:VALVE REMOTE CONTROL
MODEL:
DEFECTS/REASON FOR CALL:TESTING
LOCATION:SOLENOID VALVE PANEL 3 (BOSUN ROOM)
S/N
VALVE
LOCAL
ELECTRICAL
OPEN
SPEED
REMARKS
NO
INDICATOR
INDICATOR
CLOSE
1
CO 501
Y
Y
Y
2
C0 502
Y
Y
Y
3
CO 503
Y
Y
Y
F/2
EB
4
CO 504
Y
Y
Y
5
CO 505
Y
Y
Y
S/10
6
CO 506
Y
Y
Y
S/10
7
CO 507
Y
Y
Y
8
CO 508
Y
Y
Y
9
CO 509
Y
Y
Y
10
CO 510
Y
Y
Y
11
CO 511
Y
Y
Y
S/10
12
CO 512
Y
Y
Y
S/10
13
CO 513
Y
Y
Y
14
CO 514
Y
Y
Y
15
CO 515
Y
Y
Y
16
CO 516
Y
Y
Y
17
BA 501
Y
Y
Y
18
BA 502
Y
Y
Y
19
BA 503
N
N
Y
20
BA 504
Y
Y
Y
21
BA 505
Y
Y
Y
