VESSEL:
PORT:SINGAPORE
JOBNO : 20121226
EQUIPMENT:
VALVE REMOTE CONTROL SYSTEM
DATE: 19/12/2012
MAKE:
DAMCOS PARKER
MODEL: D1VW4CNTWFK400 K2507
DEFECTS/REASON FOR CALL:
ITEM
DESCRIPTION
REMARKS
TEST AND FOUND:-
Function tested all 73 nos
Valves remote from CCR one
by one.
Found 16 no’s of the valves not
working.
1
11 no’s of the valve is not
working in any one side either
open or close position.
5nos of valve is not working in
both directions.
Page 1 of 5
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering
Gears, Valve Remote Controls. http://joblist.raycontrol.com
SERVICE
raycOntrol pte ltd
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
Company Reg No : 198602637N
REPORT
608599Tel:65630544 Fax:65600941
ISO 9001:2008 accredited
sales@raycontrol.com
Page 2 of 5
HPU TESTING:-
While operating the power pack
found no.1 pump unable to start.
Troubleshoot and rectify.
Set and commission cut off and
2
on system for HPU.
Both VRC power pack pump run
and tested with cut off/on found
satisfactory with C/E.
Page 2 of 5
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering
Gears, Valve Remote Controls. http://joblist.raycontrol.com
SERVICE
raycOntrol pte ltd
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
Company Reg No : 198602637N
REPORT
608599Tel:65630544 Fax:65600941
ISO 9001:2008 accredited
sales@raycontrol.com
Page 3 of 5
ACCMULATOR
N2 CHECK :-
Hook up and check N2 charge
pressure to C/E satisfaction.
Page 3 of 5
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering
Gears, Valve Remote Controls. http://joblist.raycontrol.com
SERVICE
raycOntrol pte ltd
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
Company Reg No : 198602637N
REPORT
608599Tel:65630544 Fax:65600941
ISO 9001:2008 accredited
sales@raycontrol.com
Page 4 of 5
TROUBLE SHOOT:-
and rectify ALL
Faulty Valve Control
Service all solenoid valves and
croos over pilot valves.
Reassemble and
4
adjusted the speed rate for the
valves actuactors.
Checked open and close by
remote system from CCR and by
manual found working good to
C/O satisfaction.
Page 4 of 5
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering
Gears, Valve Remote Controls. http://joblist.raycontrol.com
SERVICE
raycOntrol pte ltd
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
Company Reg No : 198602637N
REPORT
608599Tel:65630544 Fax:65600941
ISO 9001:2008 accredited
sales@raycontrol.com
Page 5 of 5

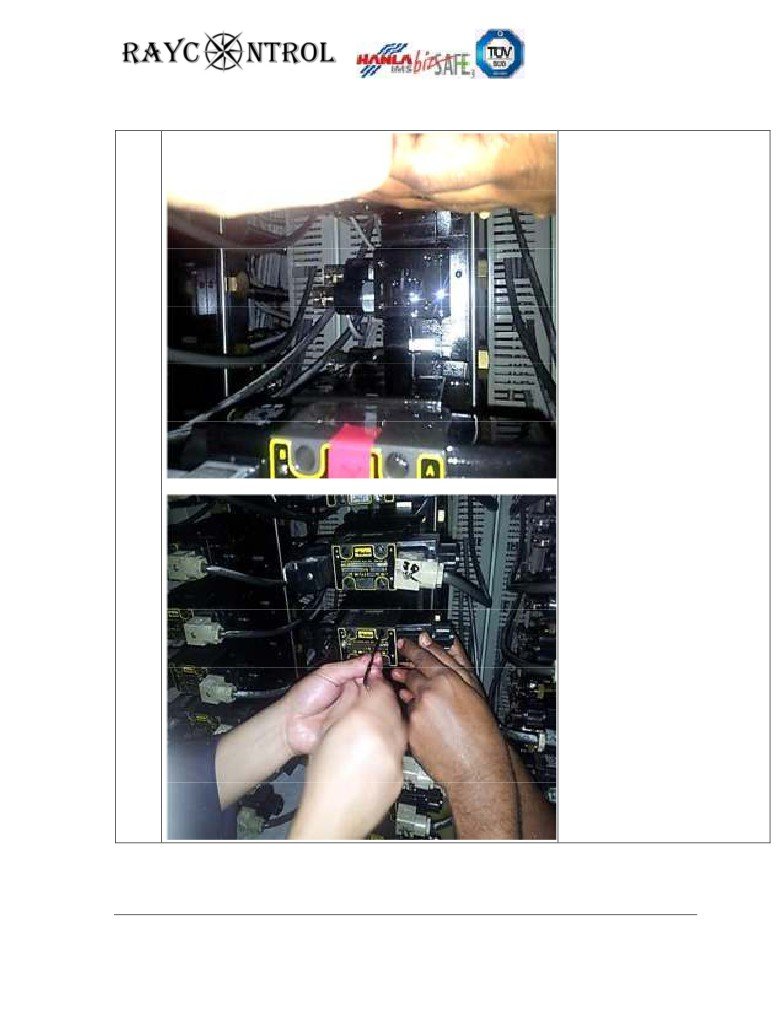

VALVE RENEWED:-
Renewed faulty solenoid valve for
the C059 and found working
good.
FINAL TEST:-
Replaced the CCR panel
indication bulb and also rectify
wrong indications.
Final tested all 73 Nos valves.
Found 4 nos of the valves are
opening and closing very slowly.
Indications (by pressure) are also
showing intermittently. Suspect
the valve actuators leaking
internally causing the errors.
Due to no entry for the cargo tank
nothing further could be done.
Final tested the VRC system
found working good to C/E
satisfaction
REPORT BY
MADASAMY
